About Moisture Sensor
Concrete Moisture Sensor
Relying on our technical expertise & intensive knowledge of our team, we have been successful in carving a niche for ourselves as a prominent manufacturer & supplier of Concrete Moisture Sensor. Dimensional accuracy, robust construction and easy maintenance are the superlative attributes of these sensors. Widely used for moisture measurements of different concretes, we are offering these sensing devices to our clients without any delay. With the help of our skilled professional we are able to fulfill bulk order of Concrete Moisture Sensor.
Further Details:

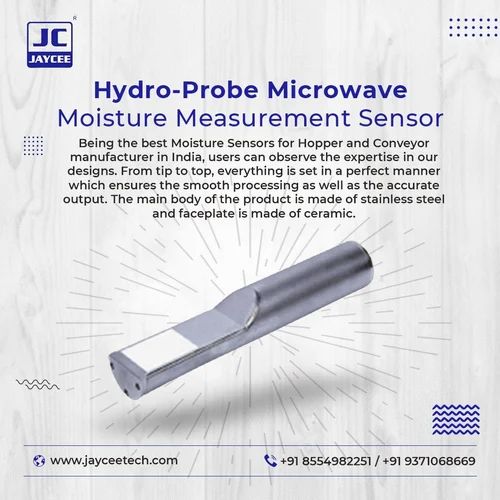

Moisture Measurement In Bulk Materials ( Hydroprobe-II )
The ultimate intelligent microwave sensor for measurement of moisture in sand and free flowing solid materials in bins
Range of moisture:
For bulk materials the sensor will measure up to the point of saturation typically 0-20% for construction materials
Penetration:
Approximately 75-100mm dependent on material
Power supply:
+15Vdc to +30Vdc. 3 watts max
Operating temperature:
Refresh rate:
Outputs are updated approximately 25 times per second
Analogue output:
Discrete inputs:
The batch average start stop or moisture/temperature multiplexing functions can be controlled via the digital inputs, Refer to Connecting the Cable section of the manual for more information.
Digital Communications:
Up to isolated RS485 2-wire port
Extension cables HP02T HP02C:
-
Type: 5 pairs twisted with overall screen 4 core with overall screen
-
Wire size: 7/0.203mm (24awg 0.22 mm2) 16/0.2mm (0.5,mm2)
-
Impedance: 92p/km 40/km
-
Capacitance: 98pF/m 98p/km
-
Max length: 90m with 15V supply 110m with Hydro-View
-
400m with 24V supply
Reliable and Accurate Moisture DetectionOur sensor employs capacitive technology and gold-plated electrodes to deliver precise, stable moisture measurements, minimizing drift and hysteresis (<1% RH). With a rapid response time (<1 second) and factory calibration, it provides consistent results for critical industrial and agricultural use.
Durable, Corrosion-Resistant BuildHoused in a stainless steel and ABS plastic enclosure, the sensor resists corrosion and physical impacts. Its gold-plated electrodes further guarantee an extended operational life, even in harsh environments, making it suitable for long-term deployment with minimal maintenance.
Versatile Installation & ApplicationCompact in design with panel or surface mounting options, the sensor can be easily integrated into diverse systems. Supporting both analog and digital outputs and compatible interfaces (3-pin header/screw terminal), it offers flexible connectivity for soil, environmental, and industrial moisture monitoring.
FAQs of Moisture Sensor:
Q: How is the moisture sensor typically installed in an industrial or agricultural setup?
A: The sensor is designed for straightforward installation using panel or surface mounting options. With a one-meter cable and both 3-pin header and screw terminal interfaces, it easily integrates into new or existing monitoring systems for soil, environmental, or process control applications.
Q: What materials and features contribute to the sensors durability?
A: This sensor is built with gold-plated electrodes for corrosion resistance and a robust enclosure made from stainless steel and ABS plastic. Its IP65 rating protects it against dust and water jets, ensuring reliable operation in tough working environments.
Q: When should the sensor be calibrated or maintained?
A: Each unit is factory calibrated, eliminating the need for initial setup calibration. Due to its high-quality materials and capacitive design, the sensor requires minimal maintenance throughout its lifespan, typically exceeding five years in standard usage conditions.
Q: Where can this moisture sensor be used most effectively?
A: The sensor is ideal for agricultural soil monitoring, industrial process control, and environmental monitoring, especially in settings that demand accurate, real-time moisture detection and resistance to environmental stressors.
Q: What are the benefits of using this sensor over other moisture detection methods?
A: This sensor offers rapid response time (<1s), high resolution (0.1% moisture), and exceptional accuracy (2% RH), along with long-term stability due to its corrosion-resistant, gold-plated probes. Its analog and digital output options provide compatibility with various monitoring and control systems.
Q: How does the sensors output interface support different usage scenarios?
A: With both analog voltage and digital signal outputs, the sensor can connect to a broad range of industrial controllers, data loggers, and automation systems. Its dual-mode input/output design ensures flexibility across diverse application requirements.
